PAH-F – the trailer with huge load volume

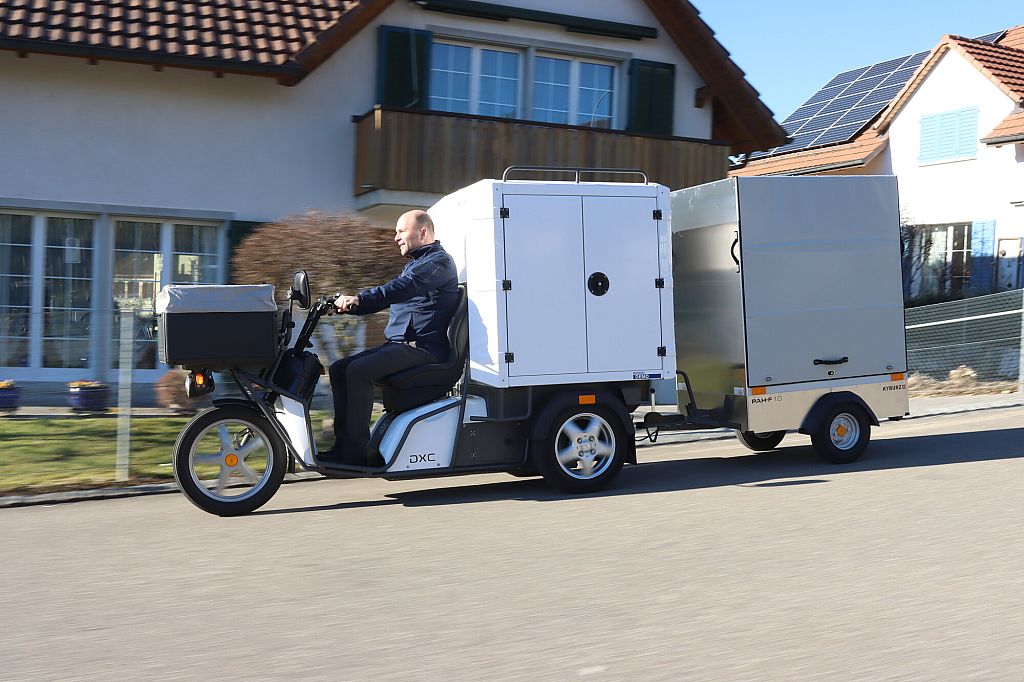

The trailer offers a larger load volume than the PAH and can be towed by the KYBURZ DXP or DXC.
The PAH-F with the rigid body has a payload of 150 kg. The cargo is protected from the weather in the voluminous load compartment. The large opening allows easy side loading and unloading. The closure with magnets and twist lock is easy and quick to handle.
Overrun brake and exterior lighting provide safety. The optional lighting in the interior simplifies the work of the employees.
Technical specifications
| Tare weight | 80 kg |
| Total weight | 230 kg |
| Max. payload | 150 kg |
| Max. drawbar load | 16 kg |
| Dimension: (LxWxH) | 1812 x 950 x 1750 mm |
| Max. Speed | 50 km/h |
Information available to download

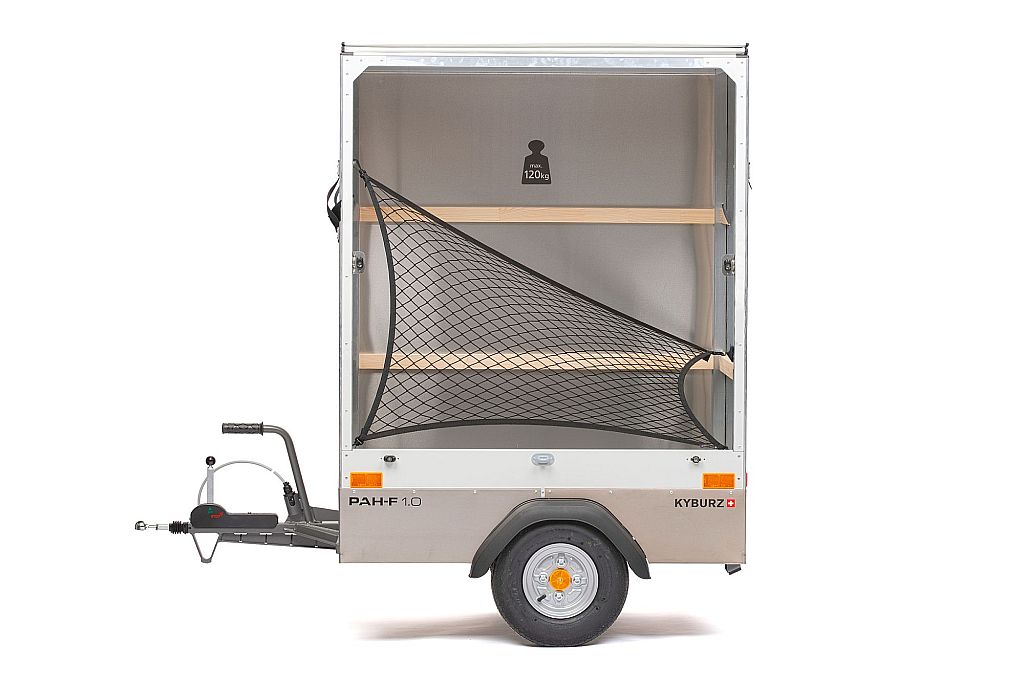

The KYBURZ PAH-F in the picture
