PAH-W – the trailer with the swappable box

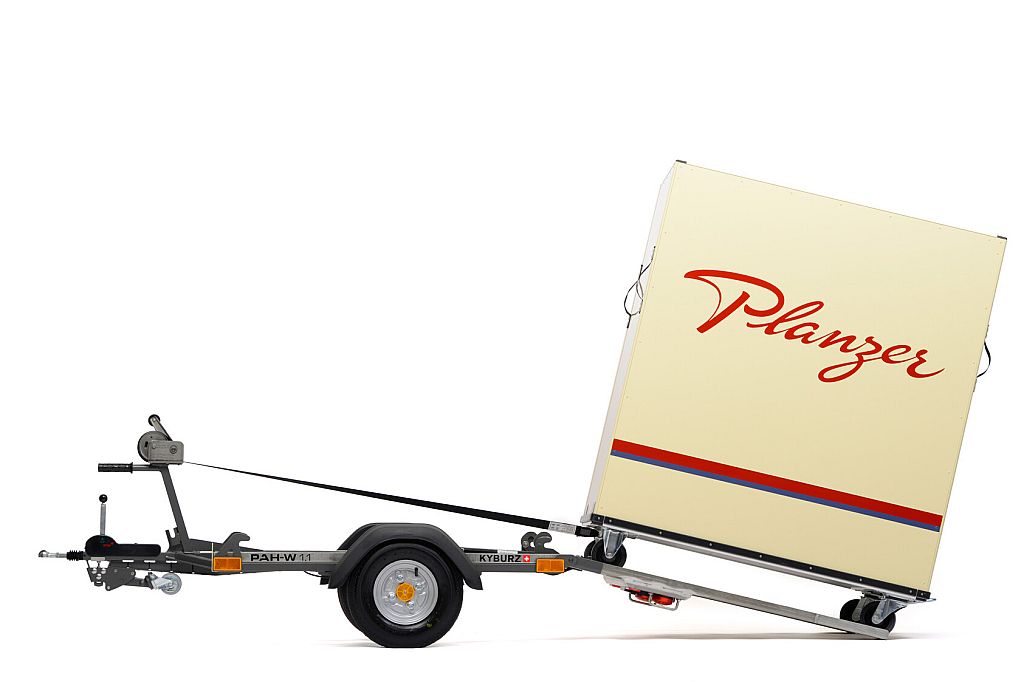

The trailer transports goods in combination with the interchangeable box and can be pulled by the KYBURZ DXP or DXC. The interchangeable box can be pulled onto the trailer with the help of a built-in winch and is secured with several systems.

The idea of the interchangeable box trailer is that you can pre-pick the deliveries directly into the interchangeable boxes.

The boxes are used as small micro-hubs and can be staged at various pick-up points. Thus, the driver can deliver the contents of the first box, then return, put down the empty box, and immediately take the next box.

Technical specifications:

Weight 55 kg
Perm. total weight 200 kg
Max. payload 145 kg (with exchangeable box)
Max. Tiller load 16 kg
Dimensions (LxBxH) 1958x986x1457 mm
Max. Speed 50 km/h
Ground clearance 269 mm

Information available to download

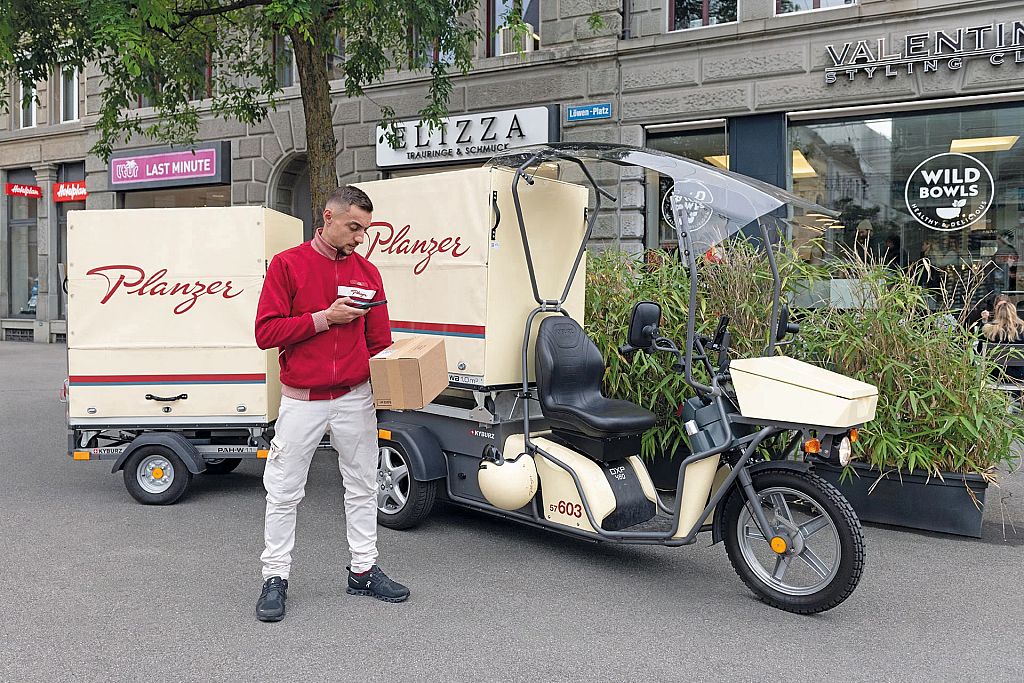

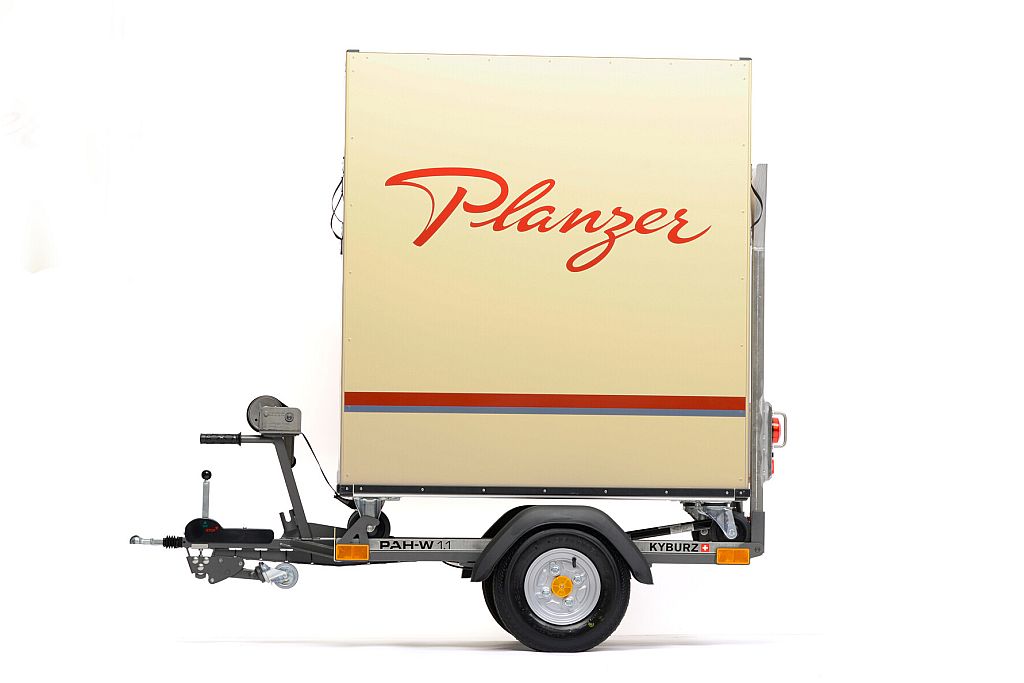

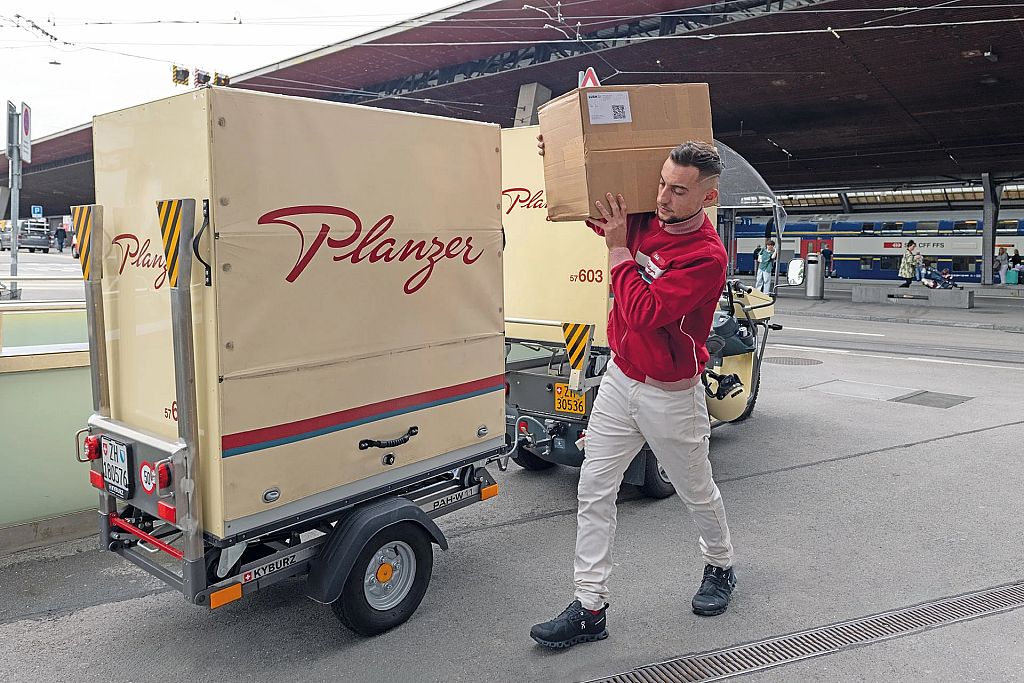

The KYBURZ PAH-W in the picture
