PAH - More load capacity for the professionals
The KYBURZ PAH trailer is the perfect complement to the KYBURZ DXP and DXC.
Its innovative technical construction can take a load capacity of up to 150 kg – which means efficient deliveries while ensuring the utmost safety.
The overrun brake on both wheels prevents strong shear forces affecting the towing vehicle.
In addition, the trailer is equipped with a unique suspension and damping system which guarantees the vehicle’s directional stability even on bumpy driving surfaces and at high speeds.
PAH-K - Multifunctionality for public services and gardeners
The KYBURZ PAH-K is based on the PAH. The large loading volume and a payload of 125 kg enable a wide range of transport options. With the hinged tailgate, quick emptying is effortless.
Technical specifications
PAH
| Empty Weight | 60 kg |
| Max. payload | 150 kg |
| Load volume (to load edge) | 0.3 m3 |
| Dimensions (LxWxH) | 1470x900x816 mm |
| Internal Dimensions (LxWxH) | 870x860x460 mm |
PAH-K
| Empty Weight | 75 kg |
| Max. payload | 125 kg |
| Load volume (to load edge) | 0.5 m3 |
| Dimensions (LxWxH) | 1514x926x1016 mm |
| Internal Dimensions (LxWxH) | 900x880x660 mm |
Information available to download

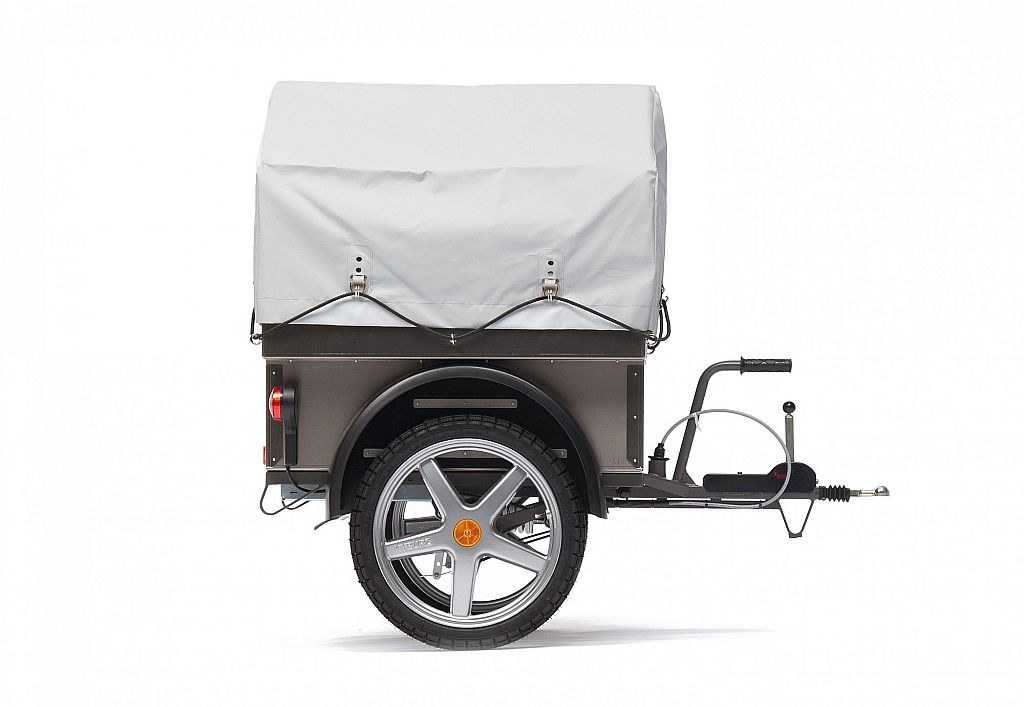

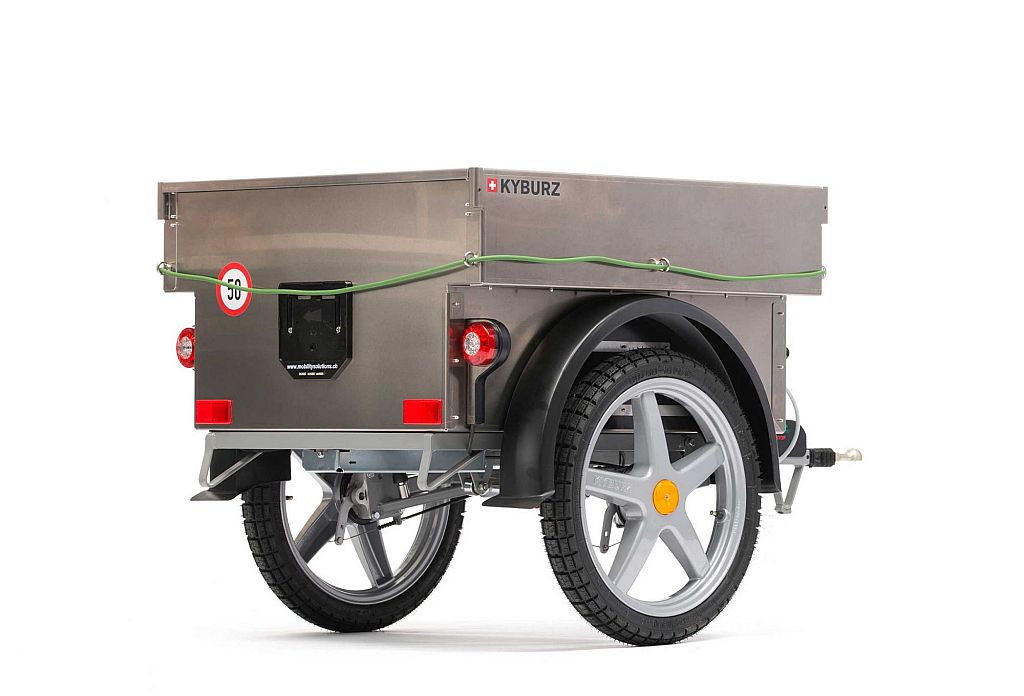

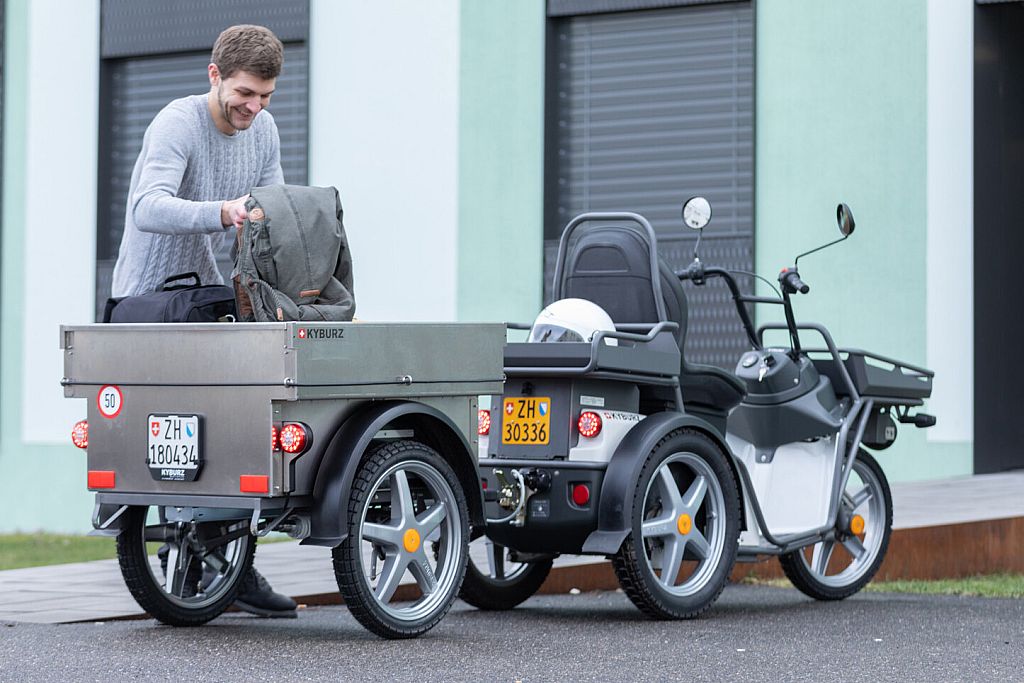

The KYBURZ PAH in pictures

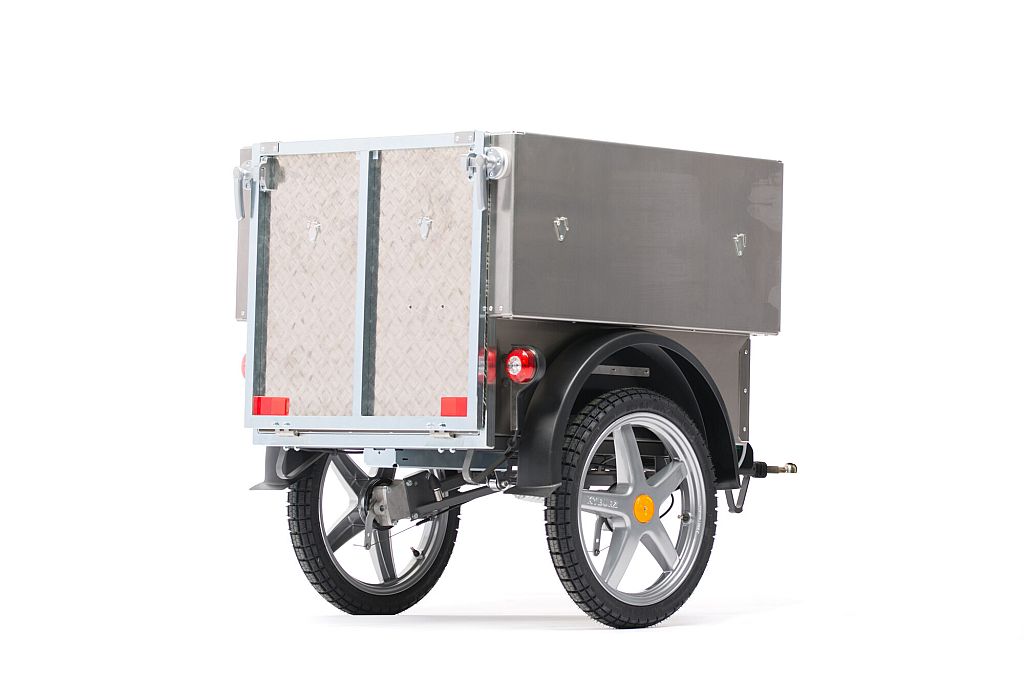

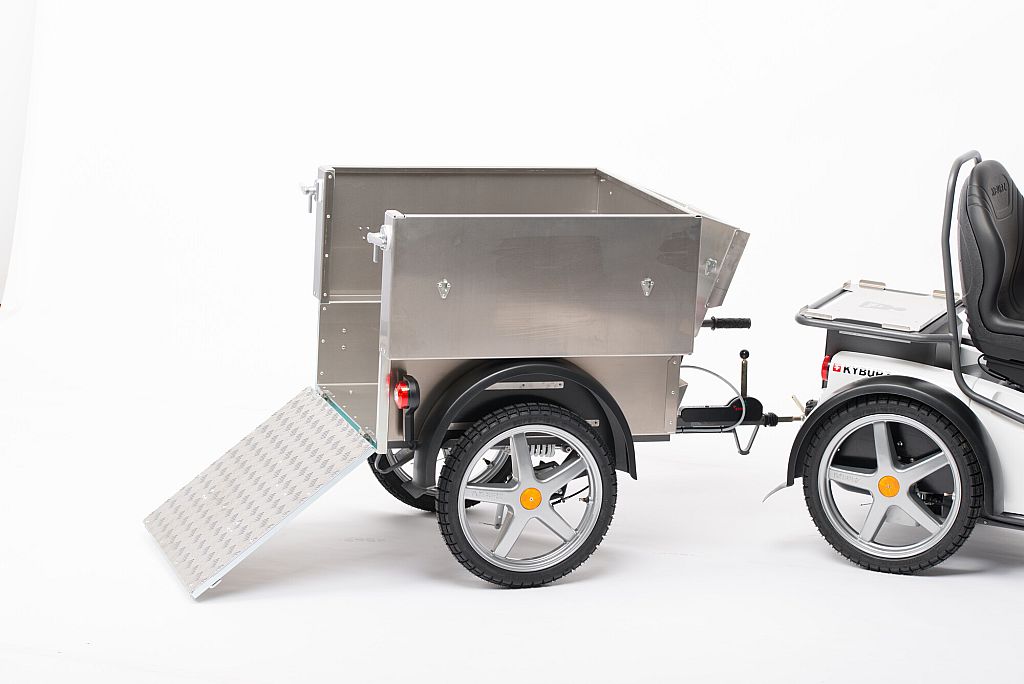

The KYBURZ PAH-K in pictures
